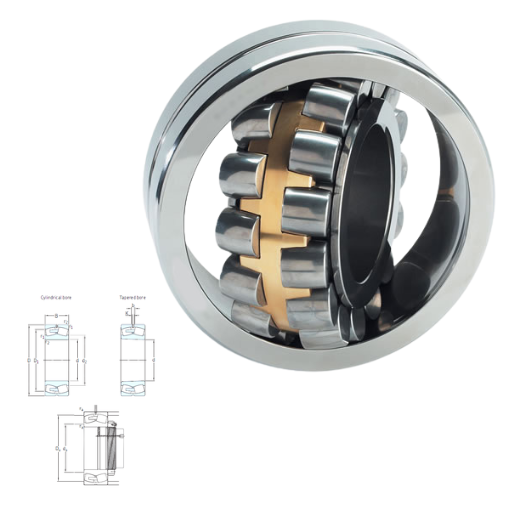

23284 CA/W33 – 23200 Series Spherical Roller Bearings

23284 CAW33 - 23200 Series Spherical Roller Bearings

From the 23200 series, the 23284 CA/W33 spherical roller bearing, being of high precision, is designed to perform heavy operations with its rugged construction and excellent performance to handle heavy radial loads, axial loads in both directions, and harsh environmental conditions. They are mostly used in sectors of mining, construction, and heavy machinery industries.

23284CA/W33 interchange SKF 23284CA/W33
23284CA/W33 cross reference SKF 23284CA/W33
23284CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:23284CA/W33

Explore the 23284 CA/W33 - 23200 Series Spherical Roller Bearings Catalogue

C272 mm
B272 mm
K12 mm
b22,3 mm
d420 mm
D760 mm
d2526 mm
D1649 mm
Weight535 Kg
ra max.6 mm
r1 min.7,5 mm
r2 min.7,5 mm
da min.452 mm
Da max.728 mm
Size (mm)420x760x272
Width (mm)272
Limiting speed630 r/min
Bearing number23284CA/W33
Reference speed450 r/min
Bore Diameter (mm)420
Outer Diameter (mm)760
Calculation factor (e)0,35
Fatigue load limit (Pu)765
Calculation factor (Y0)1,8
Calculation factor (Y1)1,9
Basic dynamic load rating (C)7350 kN
Basic static load rating (C0)11600 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23284 CA/W33 Bearings

Being one of the topmost companies in the bearing industry within China, Amigo is reputed in supplying the best 23284 CA/W33 spherical roller bearing at competitive prices. Amigo uses the latest technology and fine workmanship to assure quality control and customer satisfaction. Let Amigo be your trusted partner in fulfilling your industrial requirements by way of the said 23284 CA/W33 spherical bearing.

✅ High Load Capacity – Handles heavy radial and axial loads effectively, ensuring durability and reliability in tough applications.
✅ Self-Aligning Design – Compensates for misalignment, reducing stress on the bearing and enhancing operational efficiency.
✅ Enhanced Cage Durability – Robust brass cage improves strength, extends service life, and ensures smooth performance under demanding conditions.
✅ Optimal Heat Resistance – Withstands high temperatures, maintaining performance integrity in extreme working environments.

23200 Series Spherical Roller Bearings
