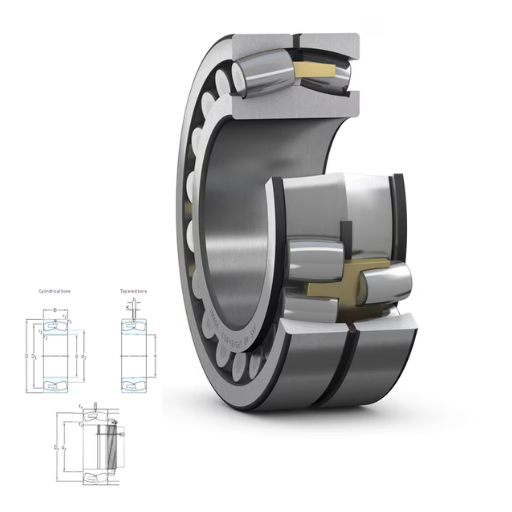

23268 CA/W33 – 23200 Series Spherical Roller Bearings

23268 CAW33- 23200 Series Spherical Roller Bearings

This bearing is also known as 23268 CA/W33 and is part of the 23200 Series Spherical Roller Bearings. It is exceptionally reliable and useful for various industries, especially for mining, construction, and other heavy machinery industries. The 23268 CA/W33 bearing is designed to support both radial and axial loads simultaneously. The CA and W33 features included a brass cage for enhanced bearing longevity and lubrication grooves that together improved function under heavy loads.

23268CA/W33 interchange SKF 23268CA/W33
23268CA/W33 cross reference SKF 23268CA/W33
23268CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:23268CA/W33

Explore the 23268 CA/W33 - 23200 Series Spherical Roller Bearings Catalogue

C224 mm
B224 mm
K12 mm
b22,3 mm
d340 mm
D620 mm
d2427 mm
D1528 mm
Weight295 Kg
ra max.5 mm
r1 min.6 mm
r2 min.6 mm
da min.366 mm
Da max.594 mm
Size (mm)340x620x224
Width (mm)224
Limiting speed800 r/min
Bearing number23268CA/W33
Reference speed560 r/min
Bore Diameter (mm)340
Outer Diameter (mm)620
Calculation factor (e)0,35
Fatigue load limit (Pu)550
Calculation factor (Y0)1,8
Calculation factor (Y1)1,9
Basic dynamic load rating (C)5100 kN
Basic static load rating (C0)7800 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23268 CA/W33 Bearings

Amigo specializes in bearing manufacuring in China and is globally recognized for producing reliable products such as the 23268 CA/W33 – 23200 Series Spherical Roller Bearing . These bearings do seamlessly integrate into upgraded machinery but also ensure complex operational issues can be solved with ease while using this part. Precision engineering whilst using high quality materials allows the bearing to withstand extreme conditions without excessive wear.

✅ High Load Capacity: Designed to handle heavy radial and axial loads for enhanced performance and reliability.
✅ Self-Alignment Capability: Automatically adjusts to misalignments, reducing operational stress and extending service life.
✅ Durable Construction: Made with robust materials to resist wear, ensuring long-lasting operation in demanding environments.
✅ Optimized Lubrication: Supports effective lubrication, minimizing friction and heat for improved efficiency and reduced maintenance needs.

23200 Series Spherical Roller Bearings
