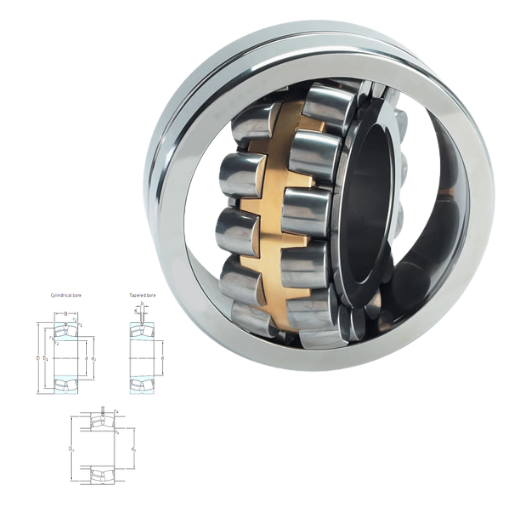

23256 CAC/W33 – 23200 Series Spherical Roller Bearings

23256 CACW33 - 23200 Series Spherical Roller Bearings

The 23256 CAC/W33 - 23200 Series Spherical Roller Bearings are high-quality bearings designed to withstand heavy radial loads as well as axial loads, making them suitable for demanding industrial applications. Manufactured to meet the requirements of precision engineering, they have maximum durability, high reliability, and capacity to work in harsh environments.

23256CC/W33 interchange SKF 23256CC/W33
23256CC/W33 cross reference SKF 23256CC/W33
23256CC/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:23256CC/W33

Explore the 23256 CAC/W33 - 23200 Series Spherical Roller Bearings Catalogue

C176 mm
B176 mm
K12 mm
b22,3 mm
d280 mm
D500 mm
d2332 mm
D1429 mm
Weight150 Kg
ra max.4 mm
r1 min.5 mm
r2 min.5 mm
da min.300 mm
Da max.480 mm
Size (mm)280x500x176
Width (mm)176
Limiting speed1100 r/min
Bearing number23256CC/W33
Reference speed800 r/min
Bore Diameter (mm)280
Outer Diameter (mm)500
Calculation factor (e)0,35
Fatigue load limit (Pu)365
Calculation factor (Y0)1,8
Calculation factor (Y1)1,9
Basic dynamic load rating (C)3250 kN
Basic static load rating (C0)4900 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23256 CAC/W33 Bearings

At Amigo, we take immense pride in presenting the 23256 CAC/W33 – 23200 Series Spherical Roller Bearings, regarded throughout China for their superior quality and extended service life. These bearings will give the performance required by your operations while mining, heavy machinery, and power generation. Very high load-carrying capacity, self-aligning to relieve misalignment, shock and vibration resistant.

✅ High Load Capacity: Designed to sustain heavy radial and axial loads, ensuring optimal performance in demanding industrial applications.
✅ Enhanced Durability: Built with superior materials and precision engineering to provide long-lasting reliability and reduced wear.
✅ Self-Aligning Capability: Automatically compensates for shaft misalignments, minimizing operational disruptions and maintenance requirements.
✅ Efficient Lubrication System: Features optimized lubrication grooves for smooth operation and extended bearing life.

23200 Series Spherical Roller Bearings
