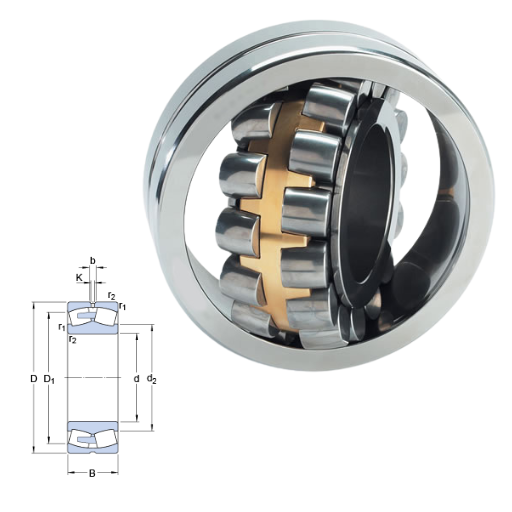

232/530 CA/W33 – 23200 Series Spherical Roller Bearings

232530 CAW33 - 23200 Series Spherical Roller Bearings

The 232/530 CA/W33 - 23200 Series Spherical Roller Bearings represent precision-made components emphasizing supreme reliability, durability, and high performance under desultory conditions. Bearing under heavy radial and axial loads because of their spherical design, they find application in machinery, metallurgy, and mining industries.

232/530 CA/W33 interchange SKF 232/530 CA/W33
232/530 CA/W33 cross reference SKF 232/530 CA/W33
232/530 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:232/530 CA/W33

Explore the 232/530 CA/W33 - 23200 Series Spherical Roller Bearings Catalogue

K12 mm
d530 mm
D980 mm
B355 mm
b22.3 mm
Size (mm)980x530x355
Width (mm)355
Mass bearing1200 kg
d2670 mm
D1836 mm
Limiting speed480 r/min
Bearing number232/530 CA/W33
Reference speed320 r/min
ra max.8 mm
Da max.940 mm
Bore Diameter (mm)980
da min.570 mm
Outer Diameter (mm)530
da - min.570 mm
Da - max.940 mm
ra - max.8 mm
Calculation factor e0.35
r1,2 min.9.5 mm
D1 ≈836 mm
d2 ≈670 mm
Calculation factor - e0.35
r1,2 - min.9.5 mm
Basic dynamic load rating C13268 kN
Basic dynamic load rating - C13268 kN
Fatigue load limit Pu1220 kN
Calculation factor Y11.9
Calculation factor Y22.9
Calculation factor Y01.8
Calculation factor - Y01.8
Calculation factor - Y22.9
Calculation factor - Y11.9
Fatigue load limit - Pu1220 kN
Basic static load rating C020400 kN
Basic static load rating - C020400 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 232/530 CA/W33 Bearings

Being one of the top 232/530 CA/W33 – 23200 Series Spherical Roller Bearings in China, Amigo has made the mark for itself as a trusted supplier, offering products in accordance with international standards. When on a fit-out of existing equipment or on a new project, this bearing offers excellent performance and hence less downtime and low maintenance; the world’s industries rely upon it.

✅ Heavy Load Capacity: Designed to handle high radial and axial loads in demanding industrial applications effortlessly.
✅ Superior Durability: Manufactured with premium materials to ensure extended operational life under extreme conditions.
✅ Self-Alignment: Compensates for shaft misalignment to reduce operational stress and increase efficiency.
✅ Enhanced Performance: Optimized internal design offers low friction and smooth operation for improved energy efficiency.
