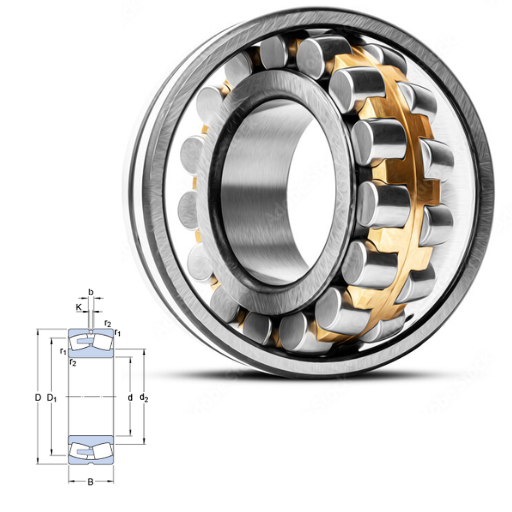

23196 CA/W33 – 23100 Series Spherical Roller Bearings

23196 CAW33 - 23100 Series Spherical Roller Bearings

The 23196 CA/W33 - 23100 series spherical roller bearings are super-grade bearings for industrial applications involving heavy radial and axial loads. Crafted with precision by Amigo, an originated name in the Chinese bearing industry, the bearing is tough with high load-carrying capacity and good self-aligning. Suitable for harsh working conditions in mining, metal processing, and heavy machinery where utmost reliability and performance remain paramount.

23196 CA/W33 interchange SKF 23196 CA/W33
23196 CA/W33 cross reference SKF 23196 CA/W33
23196 CA/W33 Equivalent bearing interchange guide：
Price：enquiry
Model Number：23196 CA/W33
INSTANT QUOTE
Download 23196 CA/W33 PDF

Explore the 23196 CA/W33 - 23100 Series Spherical Roller Bearings Catalogue

D790 mm
d480 mm
B248 mm
b22.3 mm
K12 mm
CategoryBearings
Inventory0
Size (mm)790x480x248
Width (mm)248
Mass bearing485 kg
Product GroupB04311
d2579 mm
D1692 mm
Limiting speed750 r/min
Bearing number23196 CA/W33
Reference speed400 r/min
Weight / Kilogram0
Manufacturer NameSKF
Bore Diameter (mm)790
ra max.6 mm
Da max.758 mm
da min.512 mm
Outer Diameter (mm)480
Calculation factor e0.3
r1,2 min.7.5 mm
Minimum Buy QuantityN/A
ra - max.6 mm
Da - max.758 mm
da - min.512 mm
d2 ≈579 mm
D1 ≈692 mm
r1,2 - min.7.5 mm
Calculation factor - e0.3
Basic dynamic load rating C7362 kN
Basic dynamic load rating - C7362 kN
Fatigue load limit Pu780 kN
Calculation factor Y02.2
Calculation factor Y23.4
Calculation factor Y12.3
Fatigue load limit - Pu780 kN
Calculation factor - Y02.2
Calculation factor - Y23.4
Calculation factor - Y12.3
Basic static load rating C012000 kN
Basic static load rating - C012000 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23196 CA/W33 Bearings

Crafted with the most advanced materials and manufacturing technologies in line with world-class standards, Amigo’s 23196 CA/W33 bearings enjoy a worldwide customer trust. This robust bearing will deliver without question owing to its strong inner construction with two rows of spherical rollers designed to accommodate any angular misalignment, thus easing operational stress further.

✅ High Load Capacity: Designed to support heavy radial and axial loads, ensuring reliable performance in demanding applications.
✅ Enhanced Durability: Made with robust materials, offering excellent resistance to wear and extended operational life.
✅ Self-Alignment Capability: Adjusts to shaft misalignments, reducing stress on associated components and improving overall system stability.
✅ Superior Lubrication Design: Optimized lubrication channels ensure smooth operation and reduced maintenance requirements for prolonged efficiency.
