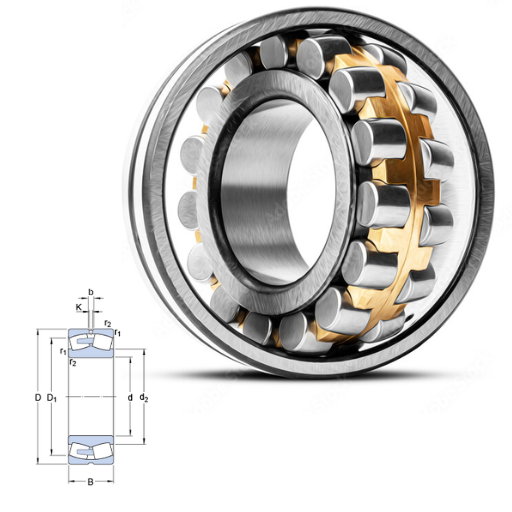

23184 CJ/W33 – 23100 Series Spherical Roller Bearings

23184 CJW33 - 23100 Series Spherical Roller Bearings

The 23184 CJ/W33 - 23100 Series Spherical Roller Bearings are high-precision bearings designed to carry heavy radial loads and moderate axial loads in the industrial fields that demand such load considerations. Since they are precision-engineered bearings of a rugged double row, they are best employed where misalignments and shocks are to be absorbed.

23184 CJ/W33 interchange SKF 23184 CJ/W33
23184 CJ/W33 cross reference SKF 23184 CJ/W33
23184 CJ/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:23184 CJ/W33

Explore the 23184 CJ/W33 - 23100 Series Spherical Roller Bearings Catalogue

D700 mm
d420 mm
B224 mm
b22.3 mm
K12 mm
UNSPSC31171510
CategoryBearings
Inventory0
Size (mm)700x420x224
Width (mm)224
Mass bearing350 kg
Product GroupB04311
d2483 mm
D1607 mm
Limiting speed900 r/min
Bearing number23184 CJ/W33
Reference speed480 r/min
Weight / Kilogram0
Manufacturer NameSKF
Bore Diameter (mm)700
da min.446 mm
Da max.674 mm
ra max.5 mm
Outer Diameter (mm)420
Minimum Buy QuantityN/A
da - min.446 mm
Da - max.674 mm
ra - max.5 mm
Calculation factor e0.3
r1,2 min.6 mm
d2 ≈483 mm
D1 ≈607 mm
r1,2 - min.6 mm
Calculation factor - e0.3
Basic dynamic load rating C5919 kN
Basic dynamic load rating - C5919 kN
Calculation factor Y12.3
Fatigue load limit Pu620 kN
Calculation factor Y23.4
Calculation factor Y02.2
Calculation factor - Y02.2
Calculation factor - Y12.3
Fatigue load limit - Pu620 kN
Calculation factor - Y23.4
Basic static load rating C09300 kN
Basic static load rating - C09300 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23184 CJ/W33 Bearings

Produced by Amigo, a sturdy name in the bearing industry, these roller bearings are made from the finest of materials, that have proven durability and wear resistance in challenging environments like mining, construction, and other heavy machinery operations. The bearings 23184 CJ/W33 through their heat treatment, as well as by adhering to strict quality control norms, can promise excellent performance and operation for a longer time.

✅ Durable Design: Engineered to withstand heavy loads, ensuring long-lasting performance in demanding industrial applications.
✅ High Load Capacity: Accommodates radial and axial forces effectively, delivering optimal efficiency in high-stress environments.
✅ Self-Aligning Capability: Minimizes alignment issues, reducing wear and enhancing operational reliability.
✅ Heat Resistance: Supports stable performance under high-temperature conditions, extending lifespan and reducing maintenance costs.

23100 Series Spherical Roller Bearings
