23180 CA/W33 – 23100 Series Spherical Roller Bearings

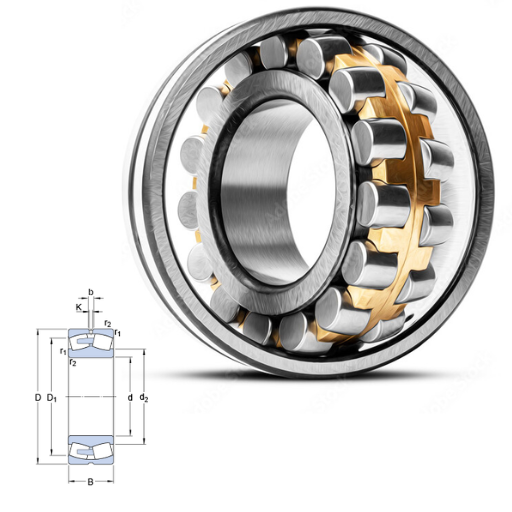

23180 CAW33 - 23100 Series Spherical Roller Bearings

The 23180 CA/W33 - 23100 Series Spherical Roller Bearings are heavy-duty bearing solutions for industrial applications having heavy-duty heavy load performance. Made in China by a company with a reputed bearing brand name- Amigo, these bearings are for heavy radial and axial loads under very demanding conditions. Furthermore, they are very reliable in applications like mining, construction, and machinery industry.

23180 CA/W33 interchange SKF 23180 CA/W33
23180 CA/W33 cross reference SKF 23180 CA/W33
23180 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:23180 CA/W33

Explore the 23180 CA/W33 - 23100 Series Spherical Roller Bearings Catalogue

D650 mm
d400 mm
B200 mm
b22.3 mm
K12 mm
UNSPSC31171510
CategoryBearings
Inventory0
Size (mm)650x400x200
Width (mm)200
Mass bearing265 kg
Product GroupB04311
d2475 mm
D1566 mm
Limiting speed950 r/min
Bearing number23180 CA/W33
Reference speed530 r/min
Weight / Kilogram0
Manufacturer NameSKF
Bore Diameter (mm)650
da min.426 mm
Da max.624 mm
ra max.5 mm
Outer Diameter (mm)400
Minimum Buy QuantityN/A
da - min.426 mm
Da - max.624 mm
ra - max.5 mm
Calculation factor e0.28
r1,2 min.6 mm
d2 ≈475 mm
D1 ≈566 mm
r1,2 - min.6 mm
Calculation factor - e0.28
Basic dynamic load rating C4864 kN
Basic dynamic load rating - C4864 kN
Calculation factor Y12.4
Fatigue load limit Pu530 kN
Calculation factor Y23.6
Calculation factor Y02.5
Calculation factor - Y02.5
Calculation factor - Y12.4
Fatigue load limit - Pu530 kN
Calculation factor - Y23.6
Basic static load rating C07650 kN
Basic static load rating - C07650 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23180 CA/W33 Bearings

Precision in manufacturing is the word used by Amigo, where highly qualified materials and techniques are used to increase the bearing life and reduce time for maintenance. The Amigo 23180 CA/W33 – 23100 Series provides top-of-the-class solutions that have been designed for heavy industrial demands that guarantee consistent reliability and value.

✅ High Load Capacity: Designed to handle heavy radial and axial loads for maximum durability and reliability.
✅ Advanced Self-Alignment: Automatically compensates for shaft misalignments, reducing wear and ensuring efficient operation.
✅ Heat Resistance: Manufactured with high-quality materials to withstand high operating temperatures, ensuring longer service life.
✅ Low Friction: Optimized internal design minimizes friction, enhancing performance and reducing energy consumption.
