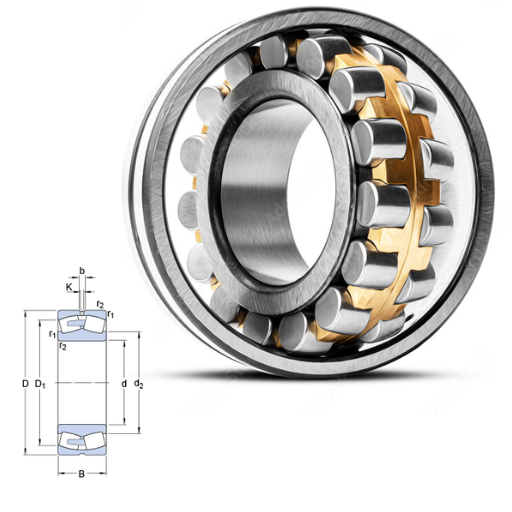

231/630 CA/W33 – 23100 Series Spherical Roller Bearings

231630 CAW33 - 23100 Series Spherical Roller Bearings

The 231/630 CA/W33 premium spherical roller bearing was designed for efficient performance in highly difficult industrial operations. Situated within the 23100 Series, this bearing handles extreme radial loads and slight axial loads in either direction, assuring its design holds against any harsh environment. Capable of operating at elevated temperatures and with misalignment, it finds use in industries such as mining, construction, and heavy machinery.

231/630 CA/W33 interchange SKF 231/630 CA/W33
231/630 CA/W33 cross reference SKF 231/630 CA/W33
231/630 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:231/630 CA/W33

Explore the 231/630 CA/W33 - 23100 Series Spherical Roller Bearings Catalogue

K12 mm
d630 mm
D1030 mm
B315 mm
b22.3 mm
Size (mm)1030x630x315
Width (mm)315
Mass bearing1050 kg
d2755 mm
D1918 mm
Limiting speed530 r/min
Bearing number231/630 CA/W33
Reference speed260 r/min
ra max.6 mm
Da max.998 mm
Bore Diameter (mm)1030
da min.662 mm
Outer Diameter (mm)630
da - min.662 mm
Da - max.998 mm
ra - max.6 mm
Calculation factor e0.3
r1,2 min.7.5 mm
D1 ≈918 mm
d2 ≈755 mm
Calculation factor - e0.3
r1,2 - min.7.5 mm
Basic dynamic load rating C12600 kN
Basic dynamic load rating - C12600 kN
Fatigue load limit Pu1220 kN
Calculation factor Y12.3
Calculation factor Y23.4
Calculation factor Y02.2
Calculation factor - Y02.2
Calculation factor - Y23.4
Calculation factor - Y12.3
Fatigue load limit - Pu1220 kN
Basic static load rating C020800 kN
Basic static load rating - C020800 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 231/630 CA/W33 Bearings

When it comes to quality and performance, Amigo is best known as the supplier of the 231/630 CA/W33 in China. Amigo has earned its reputation for superb customer service and high standards of production by delivering superior bearings to suit the requirements of many industries. Hence “Amigo’s” 231/630 CA/W33 spherical roller bearing is one to select for performance and dependability in your operations.

✅ High Load Capacity: Designed to handle heavy radial and axial loads effectively for enhanced durability and reliability.

✅ Self-Aligning Design: Automatically compensates for shaft misalignments, reducing operational stress and improving performance.
✅ Vibration Resistance: Optimized construction minimizes vibration and noise, ensuring smoother and quieter operation.
✅ Enhanced Lubrication: Advanced lubrication features promote reduced friction and longer bearing lifespan under demanding conditions.
