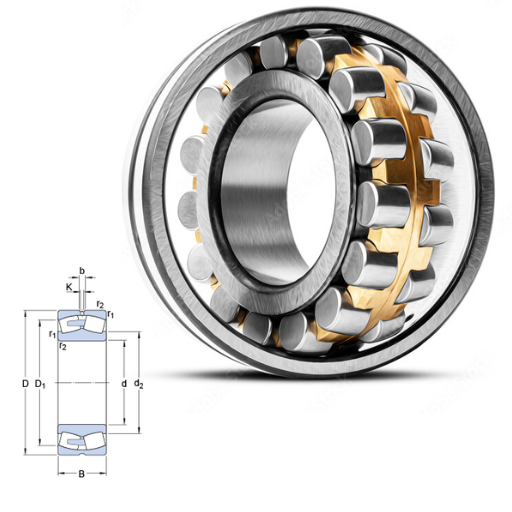

231/560 CA/W33 – 23100 Series Spherical Roller Bearings

231560 CAW33 - 23100 Series Spherical Roller Bearings

The 231/560 CA/W33-Spherical Roller Bearings have been precision-engineered to meet exacting applications, demanding high load capacity, and accommodation of durability issues. Being robustly designed, it features a strengthened inner ring, roller design optimization, and surface treatments so that the bearing can give excellent service performance throughout its life.

231/560 CA/W33 interchange SKF 231/560 CA/W33
231/560 CA/W33 cross reference SKF 231/560 CA/W33
231/560 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:231/560 CA/W33

Explore the 231/560 CA/W33 - 23100 Series Spherical Roller Bearings Catalogue

D920 mm
d560 mm
B280 mm
b22.3 mm
K12 mm
UNSPSC31171510
CategoryBearings
Inventory0
Size (mm)920x560x280
Width (mm)280
Mass bearing740 kg
Product GroupB04311
d2675 mm
D1809 mm
Limiting speed630 r/min
Bearing number231/560 CA/W33
Reference speed340 r/min
Weight / Kilogram0
Manufacturer NameSKF
Bore Diameter (mm)920
da min.592 mm
Da max.888 mm
ra max.6 mm
Outer Diameter (mm)560
Minimum Buy QuantityN/A
da - min.592 mm
Da - max.888 mm
ra - max.6 mm
Calculation factor e0.3
r1,2 min.7.5 mm
d2 ≈675 mm
D1 ≈809 mm
r1,2 - min.7.5 mm
Calculation factor - e0.3
Basic dynamic load rating C9596 kN
Basic dynamic load rating - C9596 kN
Calculation factor Y12.3
Fatigue load limit Pu980 kN
Calculation factor Y23.4
Calculation factor Y02.2
Calculation factor - Y02.2
Calculation factor - Y12.3
Fatigue load limit - Pu980 kN
Calculation factor - Y23.4
Basic static load rating C016000 kN
Basic static load rating - C016000 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 231/560 CA/W33 Bearings

Offering competitive prices and exceptional customer support, Amigo prides itself as one of the top suppliers of 231/560 CA/W33 Spherical Roller Bearings in China. Because of their reliability and high performance, Amigo’s solutions are customized to serve your industrial requirements. Engineered from superior grades of materials and using advanced technology, the 231/560 CA/W33 shows superior capability of resisting wear, vibration, and temperature.

✅ High Load Capacity – Designed to handle heavy radial and axial loads for superior performance in demanding applications.
✅ Self-Alignment – Automatically compensates for shaft misalignment to ensure smooth and reliable operation.
✅ Durable Design – Features robust construction for extended service life and resistance to wear under tough conditions.
✅ Enhanced Lubrication – Optimized internal design improves lubrication flow, reducing friction and operating temperature.

23100 Series Spherical Roller Bearings
