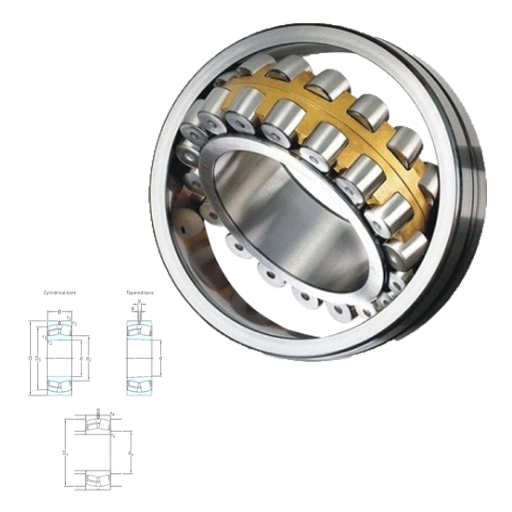

23080 CAC/W33 – 23000 Series Spherical Roller Bearings

23080 CACW33 - 23000 Series Spherical Roller Bearings

The 23080 CAC/W33 belongs to the 23000 Series of spherical roller bearings and is a top-performing product in its category. Known for its exceptional durability and precision, this bearing is designed to handle heavy radial loads while also accommodating axial loads in both directions. It features a robust steel cage, a high load-carrying capacity, and the ability to operate in challenging environments, making it ideal for industries such as mining, construction, and energy.

23080CC/W33 interchange SKF 23080CC/W33
23080CC/W33 cross reference SKF 23080CC/W33
23080CC/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:23080CC/W33

Explore the 23080 CAC/W33 - 23000 Series Spherical Roller Bearings Catalogue

C148 mm
B148 mm
K12 mm
b22,3 mm
d400 mm
D600 mm
d2450 mm
D1543 mm
Weight150 Kg
ra max.4 mm
r1 min.5 mm
r2 min.5 mm
da min.418 mm
Da max.582 mm
Size (mm)400x600x148
Width (mm)148
Limiting speed1100 r/min
Bearing number23080CC/W33
Reference speed850 r/min
Bore Diameter (mm)400
Outer Diameter (mm)600
Calculation factor (e)0,23
Fatigue load limit (Pu)415
Calculation factor (Y0)2,8
Calculation factor (Y1)2,9
Basic dynamic load rating (C)3400 kN
Basic static load rating (C0)5850 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 23080 CAC/W33 Bearings

Manufactured to the highest standards, the 23080 CAC/W33 ensures reliable performance with reduced vibration and noise. It comes equipped with advanced self-aligning capabilities, which help to correct misalignment and extend service life. As one of the top-rated bearings in China, Amigo guarantees superior quality, competitive pricing, and outstanding customer support to meet the demands of global markets. This reliable solution is suitable for applications requiring efficient performance under heavy-duty conditions.

✅ High Load Capacity: Designed to handle heavy radial and axial loads for efficient performance in demanding applications.
✅ Self-Alignment: Automatically adjusts to shaft misalignments, reducing stress and enhancing operational reliability.
✅ Durable Design: Constructed for exceptional resistance to wear, ensuring long-lasting performance under challenging conditions.
✅ Enhanced Lubrication: Optimized lubrication grooves improve heat dissipation and reduce friction for smoother operation.
