230/630 CA/W33 – 23000 Series Spherical Roller Bearings

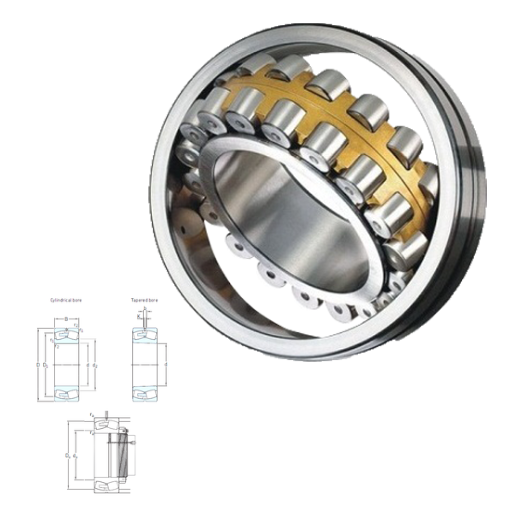

230630 CAW33 - 23000 Series Spherical Roller Bearings

Bearing number 230/630 CA/W33 belongs to the 23000 series spherical roller bearings, famed for their high-quality performance and durability in severe applications. The design is meant to incorporate loads both radial and axial, together with making sure that the bearing stays durable and efficient through applications in demanding fields like mining, heavy machinery, and construction.

230/630CA/W33 interchange SKF 230/630CA/W33
230/630CA/W33 cross reference SKF 230/630CA/W33
230/630CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:230/630CA/W33

Explore the 230/630 CA/W33 - 23000 Series Spherical Roller Bearings Catalogue

C212 mm
B212 mm
K12 mm
b22,3 mm
d630 mm
D920 mm
d2727 mm
D1839 mm
Weight485 Kg
ra max.6 mm
r1 min.7,5 mm
r2 min.7,5 mm
da min.658 mm
Da max.892 mm
Size (mm)630x920x212
Width (mm)212
Limiting speed670 r/min
Bearing number230/630CA/W33
Reference speed380 r/min
Bore Diameter (mm)630
Outer Diameter (mm)920
Calculation factor (e)0,21
Fatigue load limit (Pu)800
Calculation factor (Y0)3,2
Calculation factor (Y1)3,2
Basic dynamic load rating (C)6700 kN
Basic static load rating (C0)12500 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230/630 CA/W33 Bearings

Manufactured with premium materials assuring longer life and reliability, Amigo’s 230/630 CA/W33 spherical roller bearings are self-aligning and allow misalignments reducing stress on operation so that bearing performance will be smooth and stable even under heavy loads. Amigo is a reliable bearing supplier in China, delivering 230/630 CA/W33 bearings that are above the international standards.

✅ High Load Capacity: Designed to handle heavy radial and axial loads in demanding industrial applications.
✅ Durable Construction: Manufactured with premium materials for extended service life and reduced maintenance.
✅ Self-Aligning Capability: Automatically adjusts to misalignment, ensuring efficient performance in dynamic conditions.
✅ Efficient Lubrication System: Features optimized lubrication grooves for smooth operation and minimal friction.
