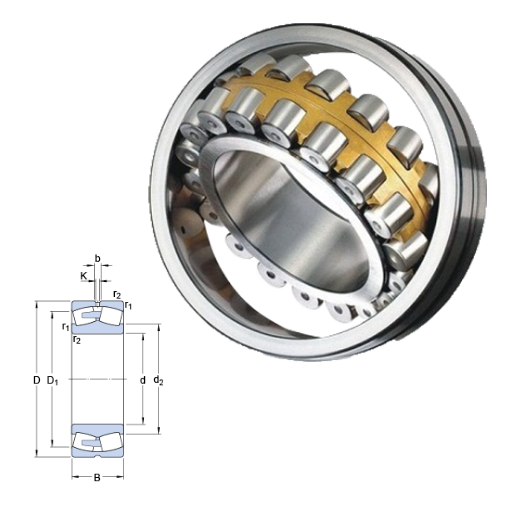

230/550 CA/W33 – 23000 Series Spherical Roller Bearings

230550 CAW33 - 23000 Series Spherical Roller Bearings

The 230/550 CA/W33 - 23000 Series spherical roller bearings are considered to be of premium quality bearings that cater to the demanding industrial applications. These are heavy-duty bearings designed to take on high radial and axial loads and therefore find themselves used in industries such as mining, construction, and heavy machinery. Designed to work with precision, the spherical roller bearings promise excellent performance and durability for years while staying subjected to harsh working conditions.

230/560 CA/W33 interchange SKF 230/560 CA/W33
230/560 CA/W33 cross reference SKF 230/560 CA/W33
230/560 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:230/560 CA/W33

Explore the 230/550 CA/W33 - 23000 Series Spherical Roller Bearings Catalogue

D820 mm
d560 mm
B195 mm
b22.3 mm
K12 mm
CategoryRoller Bearings
Inventory0
Size (mm)820x560x195
Width (mm)195
Mass bearing355 kg
Product GroupB04311
d2646 mm
D1746 mm
Limiting speed750 r/min
Bearing number230/560 CA/W33
Reference speed430 r/min
Weight / Kilogram413.899
Manufacturer NameSKF
Bore Diameter (mm)820
ra max.5 mm
Da max.797 mm
da min.583 mm
Outer Diameter (mm)560
Calculation factor e0.22
r1,2 min.6 mm
Minimum Buy QuantityN/A
ra - max.5 mm
Da - max.797 mm
da - min.583 mm
d2 ≈646 mm
D1 ≈746 mm
r1,2 - min.6 mm
Calculation factor - e0.22
Basic dynamic load rating C5779 kN
Basic dynamic load rating - C5779 kN
Fatigue load limit Pu670 kN
Calculation factor Y02.8
Calculation factor Y24.6
Calculation factor Y13
Fatigue load limit - Pu670 kN
Calculation factor - Y02.8
Calculation factor - Y24.6
Calculation factor - Y13
Basic static load rating C010200 kN
Basic static load rating - C010200 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230/550 CA/W33 Bearings

Amigo offers the finest 230/550 CA/W33 – 23000 Series Spherical Roller Bearings in China, guaranteeing a high-grade and reliable supply to meet industrial requirements. Consider Amigo your trusted partner in modern bearing solutions crafted to provide maximum performance and extended service life. The 230/550 CA/W33 with an inner diameter of 550mm best suits large equipment where reliability and support are paramount.

✅ High Load Capacity: Designed to handle heavy radial and axial loads for demanding industrial applications.
✅ Self-Aligning Design: Compensates for misalignment, reducing wear and extending the bearing’s operational life.
✅ Robust Construction: Made from high-quality materials for enhanced durability even under harsh working conditions.
✅ Efficient Lubrication: Includes optimized W33 lubrication grooves for improved performance and reduced maintenance requirements.

23000 Series Spherical Roller Bearings (1)
