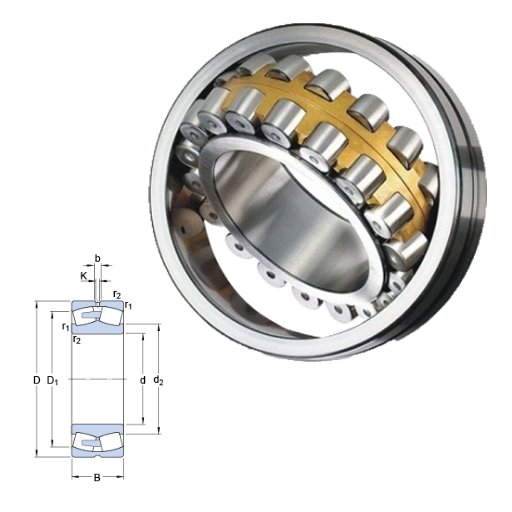

230/530 CA/W33 – 23000 Series Spherical Roller Bearings

230530 CAW33 - 23000 Series Spherical Roller Bearings

230/530 CA/W33 belongs to the 23000 series Spherical roller bearings considered the most durable and reliable bearing for heavy-duty applications. This bearing by Amigo Company, one of China's leading suppliers, is designed to withstand very high radial and axial loads, performing well under the heaviest working conditions. Due to its sturdy design, it features a steel or brass cage and has a higher load capacity and self-aligning capability to minimize the operational stress caused by shaft misalignment or vibration.

230/530 CA/W33 interchange SKF 230/530 CA/W33
230/530 CA/W33 cross reference SKF 230/530 CA/W33
230/530 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:230/530 CA/W33

Explore the 230/530 CA/W33 - 23000 Series Spherical Roller Bearings Catalogue

D780 mm
d530 mm
B185 mm
b22.3 mm
K12 mm
CategoryRoller Bearings
Inventory0
Size (mm)780x530x185
Width (mm)185
Mass bearing310 kg
Product GroupB04311
d2613 mm
D1710 mm
Limiting speed800 r/min
Bearing number230/530 CA/W33
Reference speed450 r/min
Weight / Kilogram0
Manufacturer NameSKF
Bore Diameter (mm)780
ra max.5 mm
Da max.757 mm
da min.553 mm
Outer Diameter (mm)530
Calculation factor e0.22
r1,2 min.6 mm
Minimum Buy QuantityN/A
ra - max.5 mm
Da - max.757 mm
da - min.553 mm
d2 ≈613 mm
D1 ≈710 mm
r1,2 - min.6 mm
Calculation factor - e0.22
Basic dynamic load rating C5267 kN
Basic dynamic load rating - C5267 kN
Fatigue load limit Pu610 kN
Calculation factor Y02.8
Calculation factor Y24.6
Calculation factor Y13
Fatigue load limit - Pu610 kN
Calculation factor - Y02.8
Calculation factor - Y24.6
Calculation factor - Y13
Basic static load rating C09300 kN
Basic static load rating - C09300 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230/530 CA/W33 Bearings

This bearing finds its use from mining up to construction and power generation industries because of higher-grade material and precision workmanship, giving it a long service life with low maintenance requirements. It is the very bearing with internal geometry and lubrication features optimized for any business around the world seeking reliable bearing solutions at low cost. Choose Amigo for Spherical Roller Bearings like none other.

✅ High Load Capacity: Designed to handle heavy radial and axial loads for demanding industrial applications.
✅ Self-Aligning Capability: Automatically adjusts to misalignment, reducing wear and enhancing operational reliability.
✅ Durable Construction: Made with robust materials, ensuring extended lifespan and superior performance under harsh conditions.
✅ Efficient Lubrication: Includes optimized lubrication channels for smoother rotation and reduced maintenance needs.
