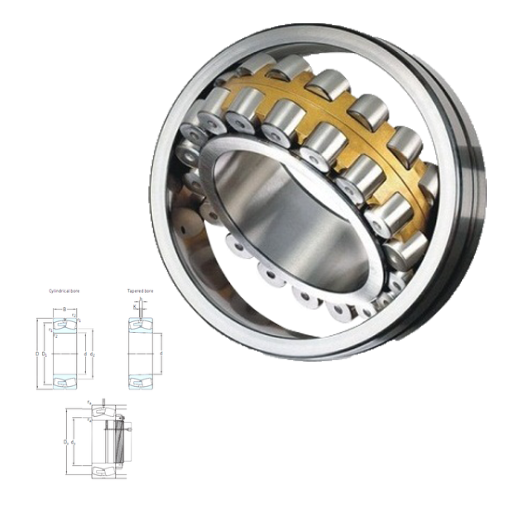

230/500 CA/W33 – 23000 Series Spherical Roller Bearings

230500 CAW33 - 23000 Series Spherical Roller Bearings

The 230/500 CA/W33 - 23000 Series Spherical Roller Bearings are premium-quality bearings designed to deliver exceptional performance in heavy-duty industrial applications. Manufactured using high-grade steel and featuring a robust CA design with a solid brass cage, these bearings are engineered to withstand high radial loads and moderate axial loads in both directions. The W33 suffix indicates the inclusion of lubrication grooves and holes, ensuring optimal lubrication for enhanced durability and reduced maintenance.

230/500CA/W33 interchange SKF 230/500CA/W33
230/500CA/W33 cross reference SKF 230/500CA/W33
230/500CA/W33 Equivalent bearing interchange guide：
Price：enquiry
Model Number：230/500CA/W33
INSTANT QUOTE
Download 230/500 CA/W33 PDF

Explore the 230/500 CA/W33 - 23000 Series Spherical Roller Bearings Catalogue

C167 mm
B167 mm
K12 mm
b22,3 mm
d500 mm
D720 mm
d2573 mm
D1658 mm
Weight225 Kg
ra max.5 mm
r1 min.6 mm
r2 min.6 mm
da min.523 mm
Da max.697 mm
Size (mm)500x720x167
Width (mm)167
Limiting speed900 r/min
Bearing number230/500CA/W33
Reference speed500 r/min
Bore Diameter (mm)500
Outer Diameter (mm)720
Calculation factor (e)0,21
Fatigue load limit (Pu)510
Calculation factor (Y0)3,2
Calculation factor (Y1)3,2
Basic dynamic load rating (C)4150 kN
Basic static load rating (C0)7800 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 230/500 CA/W33 Bearings

Recognized as one of China’s top options in spherical roller bearings, Amigo provides the 230/500 CA/W33 bearings with precise craftsmanship and advanced technology. These bearings are used across various industries, including mining, construction, and power generation, where reliability and efficiency are paramount. With their long service life and dependable operation, these bearings are the perfect solution for demanding mechanical systems worldwide.

✅ High Load Capacity: Designed to handle heavy radial and axial loads for demanding industrial applications.
✅ Self-Aligning Ability: Compensates for misalignments and shaft deflections, ensuring smooth operation and durability.
✅ Enhanced Durability: Manufactured with precision and rugged materials to withstand harsh environments and extended usage.
✅ Improved Lubrication: Optimized design supports efficient lubricant flow, reducing friction and extending bearing lifespan.
