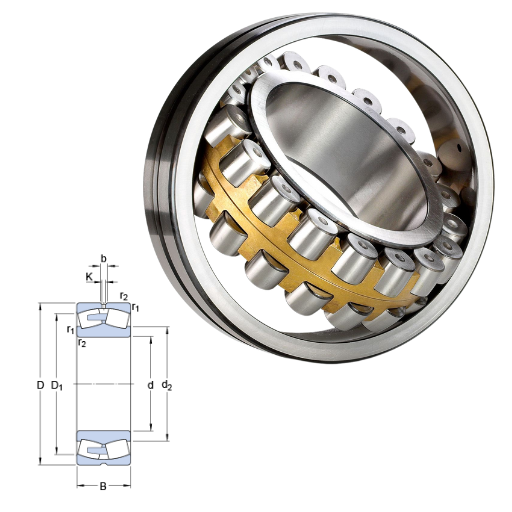

22380 CA/W33 – 22300 Series Spherical Roller Bearings

22380 CAW33 - 22300 Series Spherical Roller Bearings

The 22380 CA/W33 - 22300 Series Spherical Roller Bearings are engineered for peak performance in tough working conditions. The construction offers very rigid features to withstand heavy radial and axial loads and can manage various industrial applications. Grade-A steel was used in their manufacturing to ensure that these would hold up well with high levels of wear resistance, imparting low friction and providing a long working life in most of the severe operation conditions.

22380 CA/W33 interchange SKF 22380 CA/W33
22380 CA/W33 cross reference SKF 22380 CA/W33
22380 CA/W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:22380 CA/W33

Explore the 22380 CA/W33 - 22300 Series Spherical Roller Bearings Catalogue

D820 mm
d400 mm
B243 mm
b22.3 mm
K12 mm
CategoryBearings
Inventory0
Size (mm)820x400x243
Width (mm)243
Mass bearing650 kg
Product GroupB04311
d2534 mm
D1697 mm
Limiting speed750 r/min
Bearing number22380 CA/W33
Reference speed430 r/min
Weight / Kilogram0
Manufacturer NameSKF
Bore Diameter (mm)820
ra max.6 mm
Da max.788 mm
da min.432 mm
Outer Diameter (mm)400
Calculation factor e0.3
r1,2 min.7.5 mm
Minimum Buy QuantityN/A
ra - max.6 mm
Da - max.788 mm
da - min.432 mm
d2 ≈534 mm
D1 ≈697 mm
r1,2 - min.7.5 mm
Calculation factor - e0.3
Basic dynamic load rating C7832 kN
Basic dynamic load rating - C7832 kN
Fatigue load limit Pu670 kN
Calculation factor Y02.2
Calculation factor Y23.4
Calculation factor Y12.3
Fatigue load limit - Pu670 kN
Calculation factor - Y02.2
Calculation factor - Y23.4
Calculation factor - Y12.3
Basic static load rating C010400 kN
Basic static load rating - C010400 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22380 CA/W33 Bearings

In the sphere of spherical roller bearing cutting-edge quality and reliability, Amigo has emerged as a top-quality supplier from China. Consider the repair for 22380 CA/W33 – 22300 Series to promote the working or performance of the equipment and getting moderate maintenance costs in return. The CA/W33 have a machined brass cage design, one that imparts better stability; lubrication grooves and holes are present to foster an easy service.

✅ High Load Capacity: Designed to handle heavy radial and axial loads efficiently, ensuring durability and reliability.
✅ Optimized Design: Advanced internal geometry reduces friction and heat, promoting energy efficiency and extended lifespan.
✅ Robust Construction: Manufactured with premium materials to withstand harsh environments and resist wear and tear effectively.
✅ Self-Aligning Capability: Compensates for shaft misalignment automatically, reducing operating stresses and improving performance.
