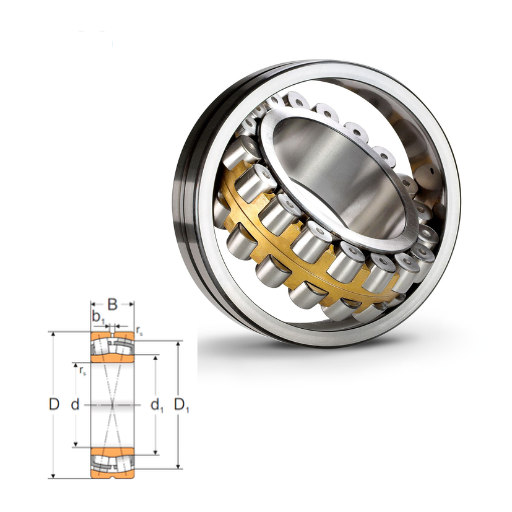

22314 W33 – 22300 Series Spherical Roller Bearings

22314 W33 - 22300 Series Spherical Roller Bearings

Amigo Bearings, a leading supplier in China, offers premium 22314 W33 bearings known for their reliability, wear resistance, and extended service life. The 22314 W33 belongs to the 22300 series of spherical roller bearings, designed for robust performance and durability. Manufactured with precision, this bearing is engineered to handle high radial and axial loads, making it suitable for demanding industrial applications.

22314 W33 interchange Loyal 22314 W33
22314 W33 cross reference Loyal 22314 W33
22314 W33 Equivalent bearing interchange guide:
Price:enquiry
Model Number:22314 W33

Explore the 22314 W33 - 22300 Series Spherical Roller Bearings Catalogue

D150 mm
d70 mm
B51 mm
C51 mm
d187,3 mm
D1125 mm
b18 mm
Weight4,41 Kg
r5 min.2,1 mm
Size (mm)70x150x51
Width (mm)51
Bearing number22314 W33
Bore Diameter (mm)70
Outer Diameter (mm)150
Calculation factor (e)0,37
(Oil) Lubrication Speed3200 r/min
Calculation factor (Y0)1,78
Calculation factor (Y1)1,82
(Grease) Lubrication Speed2400 r/min
Basic dynamic load rating (C)297 kN
Basic static load rating (C0)358 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22314 W33 Bearings

Spherical Roller Bearings 22314 W33 – 22300 Series are developed for high performance and reliability. They are particularly rugged and require less maintenance due to their state-of-the-art design and the use of modern engineering techniques and precise production processes. Bearings of Expertise fulfill even the most stringent requirements concerning reliable operation under high loading or difficult working conditions.

✅ High Load Capacity: Designed to handle heavy radial and axial loads efficiently in demanding applications.
✅ Self-Alignment Capability: Automatically compensates for shaft misalignment, reducing operational stress and wear.
✅ Durable Design: Built with robust materials for enhanced longevity and reliability in challenging environments.
✅ Low Friction Performance: Optimized for reduced friction and energy efficiency, ensuring smoother operation and lower maintenance costs.
