22313 E- 22300 Series Spherical Roller Bearings

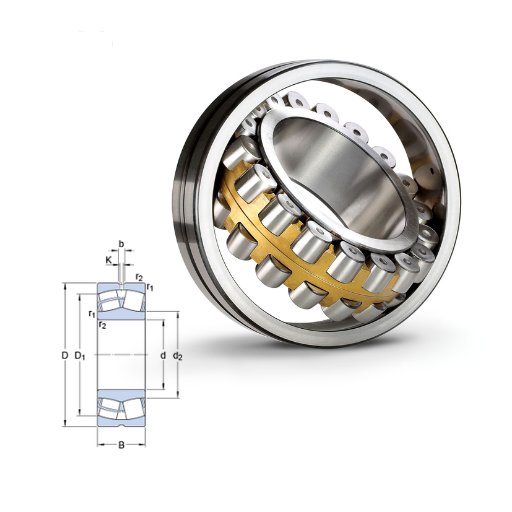

22312 E- 22300 Series Spherical Roller Bearings

The 22313 E - 22300 Series Spherical Roller Bearings have been engineered for an industrsy’s specific need, and have exceptional durability, high load bearing capacity, and resist alighment mis intervals. With great care, these bearings have also proven useful for operations done with great concsitancy under extreme environments.

22313 E interchange SKF 22313 E
22313 E cross reference SKF 22313 E
22313 E Equivalent bearing interchange guide：
Price：enquiry
Model Number：22313 E
INSTANT QUOTE
Download 22313 E PDF

Explore the 22313 E - 22300 Series Spherical Roller Bearings Catalogue

b8.3 mm
K4.5 mm
d65 mm
D140 mm
B48 mm
NounBearing
Bore2.559 Inch | 65 Millimeter
Width1.89 Inch | 48 Millimeter
UNSPSC31171510
series:223
CategorySpherical Roller Bearing
Size (mm)140x65x48
EnclosureOpen
Inventory0
bore type:Straight
Width (mm)48
cage type:Inner Ring Guided
maximum rpm:5000 RPM
Weight / LBS7.839
Bore ProfileStraight
Mass bearing3.75 kg
D1118 mm
Cage MaterialSteel
closure type:Open
d281.6 mm
Product GroupB04311
Inch - MetricMetric
fillet radius:2 mm
cage material:Steel
overall width:4.3800 in
bore diameter:65 mm
Keyword StringSpherical
Withdrawal NutNot Applicable
RelubricatableYes
Bearing number22313 E
Limiting speed5000 r/min
finish/coating:Uncoated
Rolling ElementSpherical Roller Bearing
Mounting MethodShaft Mount
Reference speed3800 r/min
outer ring type:Not Split
Manufacturer URLhttp://www.skf.com
Long Description65MM Straight Bore; 140MM Outside Diameter; 48MM Width; C0-Medium Clearance; Shaft Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable
Outside Diameter5.512 Inch | 140 Millimeter
outside diameter:140 mm
bearing material:Steel
outer ring width:48 mm
Weight / Kilogram3.559
Withdrawal SleeveNot Applicable
precision rating:Not Rated
Manufacturer NameSKF
Bore Diameter (mm)140
Da max.128 mm
da min.77 mm
ra max.2 mm
Internal ClearanceC0-Medium
internal clearance:C0
Outer Diameter (mm)65
Adapter Part NumberNot Applicable Inch | Not Applicable Millimeter
r1,2 min.2.1 mm
Minimum Buy QuantityN/A
da - min.77 mm
Da - max.128 mm
ra - max.2 mm
Calculation factor e0.35
D1 ≈118 mm
d2 ≈81.6 mm
static load capacity:360 kN
Calculation factor - e0.35
dynamic load capacity:340 kN
r1,2 - min.2.1 mm
lubrication hole type:Lubrication Groove & Hole
Harmonized Tariff Code84823080
Number of Rows of RollersDouble Row
Basic dynamic load rating C357 kN
operating temperature range:Maximum of +390 °F
Basic dynamic load rating - C357 kN
Calculation factor Y11.9
Fatigue load limit Pu38 kN
Calculation factor Y22.9
Calculation factor Y01.8
Calculation factor - Y11.9
Calculation factor - Y22.9
Calculation factor - Y01.8
Fatigue load limit - Pu38 kN
Basic static load rating C0360 kN
Basic static load rating - C0360 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22313 E Bearings

AMIGO S.A. offers spherically self-aligning roller bearings type236, such as the 22313 E – 22300 Series Spherical Roller Bearings that withstand overwhelming workload while ensuring persistent reliability and longer bearing life for optimal performance. Servicing other than industrial machines like construction machinery and heavy-duty tools will achieve utmost effectiveness alongside functioning without operating hindrance.

✅ Durability: Designed for heavy loads, ensuring long-lasting performance in demanding industrial applications.
✅ Versatility: Accommodates misalignment and axial loads, providing flexibility in varied operational conditions.
✅ Efficiency: Low friction design enhances energy efficiency, reducing operational costs.
✅ Reliability: Superior quality materials and engineering ensure consistent performance and minimal maintenance requirements.
