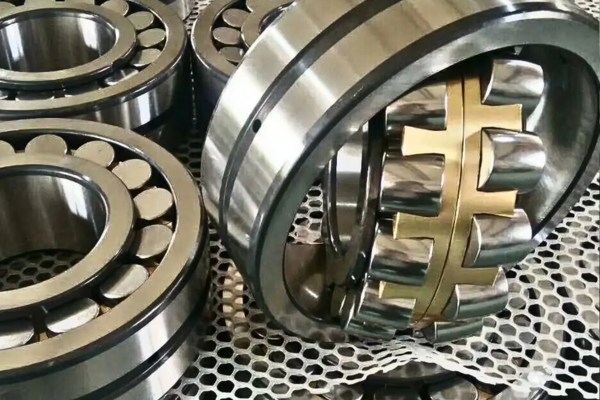

22309 E – 22300 Series Spherical Roller Bearings

22308 E - 22300 Series Spherical Roller Bearings

Thanks to their advanced engineering, the 22309 E - 22300 Series Spherical Roller Bearings have self-aligning mechanisms which ensure smooth operation even when there are shifts in the shaft angle or when the shaft is bent. They are versatile and can be used in different fields of industries because they offer great performance as well as durability.

22309E interchange SKF 22309E
22309E cross reference SKF 22309E
22309E Equivalent bearing interchange guide:
Price:enquiry
Model Number:22309E

Explore the 22309 E - 22300 Series Spherical Roller Bearings Catalogue

C36 mm
B36 mm
K3 mm
b6 mm
d45 mm
D100 mm
d257,6 mm
D183,4 mm
Weight1,4 Kg
ra max.1,5 mm
r1 min.1,5 mm
r2 min.1,5 mm
da min.54 mm
Da max.91 mm
Size (mm)45x100x36
Width (mm)36
Limiting speed7000 r/min
Bearing number22309E
Reference speed5300 r/min
Bore Diameter (mm)45
Outer Diameter (mm)100
Calculation factor (e)0,37
Fatigue load limit (Pu)19,6
Calculation factor (Y0)1,8
Calculation factor (Y1)1,8
Basic dynamic load rating (C)183 kN
Basic static load rating (C0)183 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22309 E Bearings

No other Spherical Roller Bearings S22309 E – 22300 Series bear so much reputation effectiveness and efficiency as with our products. These bearings are custom-made with precision and optimally built to withstand and function under heavy radial and axial loads which is common in harsh operating environments. You can count on us all the time to serve you the best suited products and quality at services engineered around your needs.

✅ Enhanced Durability: Engineered for heavy loads and harsh conditions, ensuring long-lasting performance and reliability.
✅ Superior Lubrication: Reduces wear and tear with advanced grease retention and minimized maintenance needs.
✅ High Load Capacity: Optimized design supports axial and radial loads seamlessly for industrial applications.
✅ Precision Engineering: Ensures smooth operation and minimizes vibration, boosting equipment efficiency and lifecycle.
