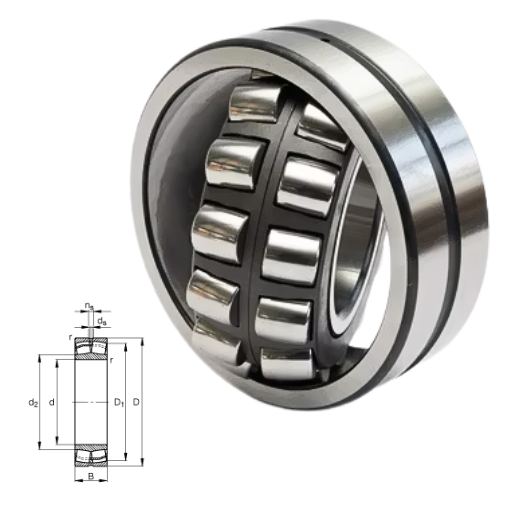

22313 E/T41A – 22300 Series Shaker Screen Style Spherical Roller Bearings

22313 ET41A - 22300 Series Shaker Screen Style Spherical Roller Bearings

As a part of the 22300 Series, the 22313 E/T41A is a premium shaker screen style spherical roller bearing specially made to sustain heavy loads and rigorous conditions of the high industrial segments. Its advanced vibration tolerance features makes it the best choice when used in vibrating screens, crushers, and other heavy duty industrial machines. You can always rely on Amigo and their strict quality control processes ensuring exceptional standards for their shaker screen bearings.

22313-E1-T41A interchange FAG 22313-E1-T41A
22313-E1-T41A cross reference FAG 22313-E1-T41A
22313-E1-T41A Equivalent bearing interchange guide:
Price:enquiry
Model Number:22313-E1-T41A

Explore the 22313 E/T41A - 22300 Series Shaker Screen Style Spherical Roller Bearings Catalogue

m3,57 kg / Weight
d65 mm
D140 mm
B48 mm
e0,34
Size (mm)65x140x48
Width (mm)48
nB3950 1/min
nG5000 1/min / Limiting speed
Y01,96
Y22,98
Y12
Cr350000 N / Dynamic load rating (radial)
ds4,8 mm
ns9,5 mm
d283,2 mm
D1119,3 mm
C0r365000 N / Static load rating (radial)
Bearing number22313-E1-T41A
rmin2,1 mm
ra max2,1 mm
da min77 mm
Da max128 mm
Bore Diameter (mm)65
Outer Diameter (mm)140

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22313 E/T41A Bearings

Like all other products manufactured by Amigo, one of the leaders in bearing innovation in China, the 22313 E/T41A comes with reinforced steel cage, additional internal features to reduce friction , and improved durability under harsh conditions. This spherical roller bearing is designed for sharp radial and axial loads while delivering high accuracy and reliability.

✅ High Load Capacity: Designed to handle heavy loads, ensuring durability and reliability in demanding applications.
✅ Enhanced Sealing: Robust seals protect against dust and contaminants, extending the bearing’s operational lifespan.
✅ Vibration Resistance: Engineered for high-vibration environments, providing stable performance in shaker screens and similar machinery.
✅ Precision Engineering: Ensures smooth operation and reduces downtime, improving equipment efficiency and productivity.

22300 Series Shaker Screen Style Spherical Roller Bearings
