22309 E/T41A – 22300 Series Shaker Screen Style Spherical Roller Bearings

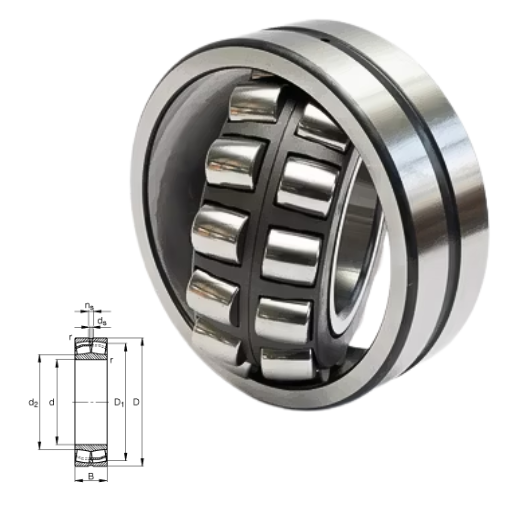

22309 ET41A - 22300 Series Shaker Screen Style Spherical Roller Bearings

The 22309 E/T41A - 22300 Series Spherical Roller Bearings have been custom developed for shaker screen bearings that require extreme performance standards. These bearings are flagged for exceptional reliability and extreme durability performance. The bearings were specifically made for extreme environments with large radial forces, heavy and violent vibrations, and massive scale productivity structures. They are optimally designed for use in industrial operations of mining, aggregate processing, and other ultra heavy industries.

22309-E1-T41A interchange FAG 22309-E1-T41A
22309-E1-T41A cross reference FAG 22309-E1-T41A
22309-E1-T41A Equivalent bearing interchange guide:
Price:enquiry
Model Number:22309-E1-T41A

Explore the 22309 E/T41A - 22300 Series Shaker Screen Style Spherical Roller Bearings Catalogue

m1,39 kg / Weight
d45 mm
D100 mm
B36 mm
e0,36
Size (mm)45x100x36
Width (mm)36
nB5300 1/min
nG6800 1/min / Limiting speed
Y01,86
Y22,83
Y11,9
Cr187000 N / Dynamic load rating (radial)
ds3,2 mm
ns6,5 mm
d258,9 mm
D184,7 mm
C0r183000 N / Static load rating (radial)
Bearing number22309-E1-T41A
rmin1,5 mm
ra max1,5 mm
da min54 mm
Da max91 mm
Bore Diameter (mm)45
Outer Diameter (mm)100

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22309 E/T41A Bearings

These Amigo bearings are recognized along with other Chinese counterparts as the best shaker screen style spherical roller bearings. They have established themselves to be synonymous with advanced technology and distinguished quality. Performance consistency or operational durability is needed, these bearings will remain highly reliable in versatile industrial applications.

✅ Enhanced Load Capacity: Handles high radial and axial loads, ensuring durability in heavy-duty shaker screen applications.
✅ Vibration Resistance: Designed for high-impact environments, reducing wear and maintaining optimal performance under extreme vibrations.
✅ Improved Lubrication Efficiency: Optimized internal design allows for consistent lubrication flow, extending bearing life and reducing maintenance needs.
✅ Precision Engineering: Manufactured with tight tolerances for reliable operation and improved efficiency in high-speed machinery.

22300 Series Shaker Screen Style Spherical Roller Bearings
