22308 E/T41A – 22300 Series Shaker Screen Style Spherical Roller Bearings

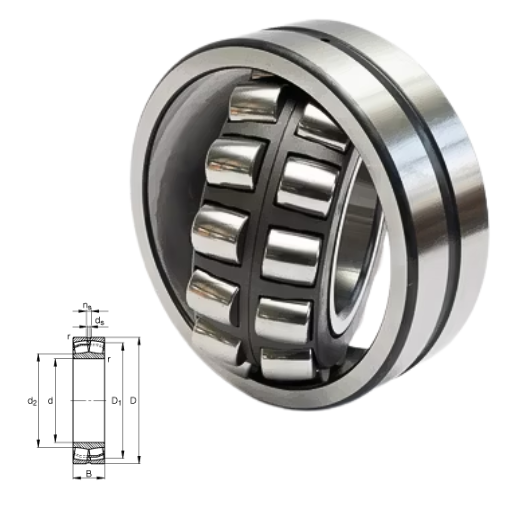

22308 ET41A - 22300 Series Shaker Screen Style Spherical Roller Bearings

The 22308 E/T41A - 22300 Series Shaker Screen Type Spherical Roller Bearings are specifically manufactured to withstand extreme application conditions. Used primarily in vibrating screens and other types of vibratory equipment, these bearings are designed to endure high static and dynamic loads and severe shocks and heavy vibrations. These spherical roller bearings have a strengthened cage and beneficial internal structure which increase operational stability and load-carrying capacity.

22308-E1-T41A interchange FAG 22308-E1-T41A
22308-E1-T41A cross reference FAG 22308-E1-T41A
22308-E1-T41A Equivalent bearing interchange guide:
Price:enquiry
Model Number:22308-E1-T41A

Explore the 22308 E/T41A - 22300 Series Shaker Screen Style Spherical Roller Bearings Catalogue

m1,05 kg / Weight
d40 mm
D90 mm
B33 mm
e0,36
Size (mm)40x90x33
Width (mm)33
nB5800 1/min
nG7600 1/min / Limiting speed
Y01,82
Y22,77
Y11,86
Cr156000 N / Dynamic load rating (radial)
ds3,2 mm
ns4,8 mm
d252,4 mm
D176 mm
C0r149000 N / Static load rating (radial)
Bearing number22308-E1-T41A
rmin1,5 mm
ra max1,5 mm
da min49 mm
Da max81 mm
Bore Diameter (mm)40
Outer Diameter (mm)90

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22308 E/T41A Bearings

Amigo, one of the first suppliers in China, sells the 22308 E/T41A bearings with complete assurance of accuracy and excellence. For use in mining or aggregate processing, as well as other industrial applications, these bearings provide unmatched dependability and unrivaled performance, allowing seamless operations across all industries worldwide.

✅ High Load Capacity: Designed to handle heavy radial and axial loads during intense shaker screen operation.
✅ Enhanced Durability: Engineered with robust materials to ensure longer lifespan under high vibration environments.
✅ Improved Performance: Optimized internal geometry reduces heat generation and increases bearing efficiency.
✅ Reliable Precision: Offers consistent performance and alignment, maintaining stability in demanding conditions.

22300 Series Shaker Screen Style Spherical Roller Bearings
