22216 E- 22200 Series Spherical Roller Bearings

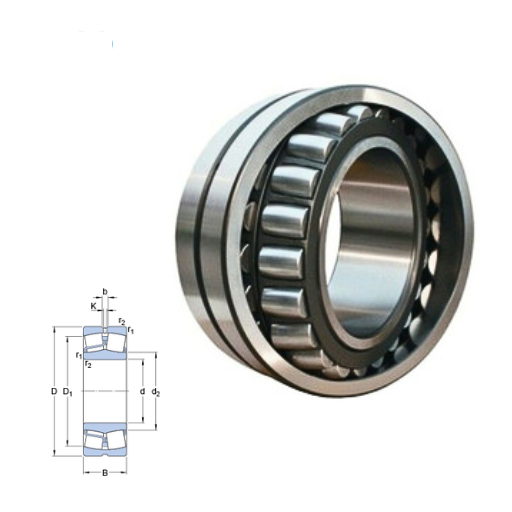

22214 E - 22200 Series Spherical Roller Bearings

Amigo’s Spherical Roller Bearings 22216 E- 22200 Series possess state-of–the–art features and is well known in China for their dependability on heavy-duty applications. Around the world, Amigo has become a household name because of their need for industrial offers because they are used in precision engineering solutions. For true performance and reliability, Amigo Spherical Roller Bearings 22216 E- 22200 Series are your choice.

22216 E interchange SKF 22216 E
22216 E cross reference SKF 22216 E
22216 E Equivalent bearing interchange guide:
Price:enquiry
Model Number:22216 E

Explore the 22216 E - 22200 Series Spherical Roller Bearings Catalogue

b6 mm
K3 mm
d80 mm
D140 mm
B33 mm
NounBearing
Bore3.15 Inch | 80 Millimeter
Width1.299 Inch | 33 Millimeter
UNSPSC31171510
series:222
CategorySpherical Roller Bearing
Size (mm)140x80x33
EnclosureOpen
Inventory0
Width (mm)33
bore type:Straight
maximum rpm:6000 RPM
Weight / LBS4.735
Bore ProfileStraight
Mass bearing2.1 kg
Cage MaterialSteel
closure type:Open
d294.7 mm
D1124 mm
Inch - MetricMetric
Product GroupB04311
Limiting speed6000 r/min
fillet radius:2 mm
cage material:Steel
overall width:4.3800 in
Keyword StringSpherical
Withdrawal NutNot Applicable
RelubricatableYes
bore diameter:80 mm
Bearing number22216 E
finish/coating:Uncoated
Mounting MethodShaft Mount
Rolling ElementSpherical Roller Bearing
Reference speed4300 r/min
Manufacturer URLhttp://www.skf.com
outer ring type:Not Split
Long Description80MM Straight Bore; 140MM Outside Diameter; 33MM Width; C0-Medium Clearance; Shaft Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable
Outside Diameter5.512 Inch | 140 Millimeter
outer ring width:33 mm
precision rating:Not Rated
outside diameter:140 mm
Manufacturer NameSKF
bearing material:Steel
Weight / Kilogram2.15
Withdrawal SleeveNot Applicable
Bore Diameter (mm)140
ra max.2 mm
Da max.129 mm
da min.91 mm
Internal ClearanceC0-Medium
Outer Diameter (mm)80
Adapter Part NumberNot Applicable Inch | Not Applicable Millimeter
internal clearance:C0
da - min.91 mm
Minimum Buy QuantityN/A
ra - max.2 mm
r1,2 min.2 mm
Da - max.129 mm
Calculation factor e0.22
d2 ≈94.7 mm
static load capacity:270 kN
D1 ≈124 mm
dynamic load capacity:236 kN
lubrication hole type:Lubrication Groove & Hole
Harmonized Tariff Code84823080
Calculation factor - e0.22
r1,2 - min.2 mm
Number of Rows of RollersDouble Row
Basic dynamic load rating C243 kN
operating temperature range:Maximum of +390 °F
Basic dynamic load rating - C243 kN
Fatigue load limit Pu29 kN
Calculation factor Y02.8
Calculation factor Y24.6
Calculation factor Y13
Calculation factor - Y13
Calculation factor - Y02.8
Fatigue load limit - Pu29 kN
Calculation factor - Y24.6
Basic static load rating C0270 kN
Basic static load rating - C0270 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 22216 E Bearings

This is precisely why we manufacture both 22216 E and the 22200 Series Bearings as they both serve as the leading solution for demanding applications requiring the highest efficiency and reliability. Built from superior quality materials and well engineered, these bearings can sufficiently handle hefty loads, minimize friction, and elongate the lifespan of equipment.

✅ Durability: Engineered to withstand extreme conditions, ensuring long-lasting performance and reliability in heavy-duty applications.
✅ High Load Capacity: Designed to efficiently handle heavy radial and axial loads, offering superior operational support.
✅ Self-Alignment: Automatically adjusts to shaft misalignment, providing smoother functionality and reduced maintenance requirements.
✅ Low Friction: Optimized design minimizes friction, resulting in higher efficiency and energy savings for various machinery.
