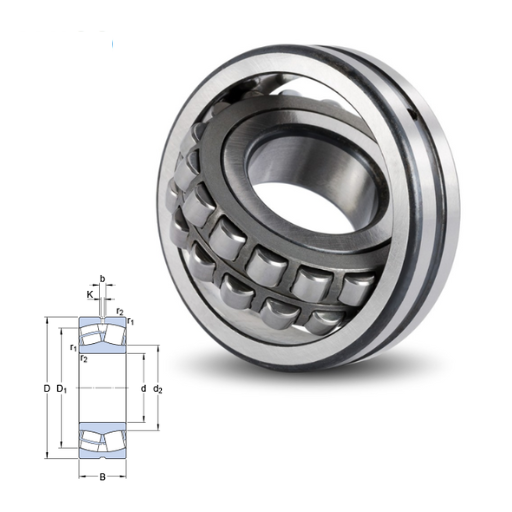

Designed for optimal performance, the 21313 E-21300 Series Spherical Roller Bearings excel in reliability, making them suitable for heavy-duty industrial tasks. These bearings are able to sustain both radial and axial loads which enables their use in highly vibratile and impactful environments.
| 21313 E interchange SKF 21313 E | |
| 21313 E cross reference SKF 21313 E | |
| 21313 E Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | 21313 |
| b | 6 mm |
|---|---|
| K | 3 mm |
| d | 65 mm |
| D | 140 mm |
| B | 33 mm |
| Noun | Bearing |
| Bore | 2.559 Inch | 65 Millimeter |
| Width | 1.299 Inch | 33 Millimeter |
| UNSPSC | 31171510 |
| series: | 213 |
| Category | Spherical Roller Bearing |
| Size (mm) | 140x65x33 |
| Enclosure | Open |
| Inventory | 0 |
| bore type: | Straight |
| Width (mm) | 33 |
| cage type: | Inner Ring Guided |
| maximum rpm: | 6000 RPM |
| Weight / LBS | 5.671 |
| Bore Profile | Straight |
| Mass bearing | 2.55 kg |
| D1 | 124 mm |
| Cage Material | Steel |
| closure type: | Open |
| d2 | 94.7 mm |
| Product Group | B04311 |
| Inch - Metric | Metric |
| fillet radius: | 2 mm |
| cage material: | Steel |
| overall width: | 33 mm |
| bore diameter: | 65 mm |
| Keyword String | Spherical |
| Withdrawal Nut | Not Applicable |
| Relubricatable | Yes |
| Bearing number | 21313 E |
| Limiting speed | 6000 r/min |
| finish/coating: | Uncoated |
| Rolling Element | Spherical Roller Bearing |
| Mounting Method | Shaft Mount |
| Reference speed | 4300 r/min |
| outer ring type: | Not Split |
| Manufacturer URL | http://www.skf.com |
| Long Description | 65MM Straight Bore; 140MM Outside Diameter; 33MM Width; C0-Medium Clearance; Shaft Mount; Double Row of Spherical Roller Bearings; Steel Cage Material; Open Enclosure; Relubricatable |
| Outside Diameter | 5.512 Inch | 140 Millimeter |
| outside diameter: | 140 mm |
| bearing material: | Steel |
| outer ring width: | 33 mm |
| Weight / Kilogram | 2.575 |
| Withdrawal Sleeve | Not Applicable |
| precision rating: | Not Rated |
| Manufacturer Name | SKF |
| da min. | 77 mm |
| Bore Diameter (mm) | 140 |
| Da max. | 128 mm |
| ra max. | 2 mm |
| Internal Clearance | C0-Medium |
| internal clearance: | C0 |
| Outer Diameter (mm) | 65 |
| Adapter Part Number | Not Applicable Inch | Not Applicable Millimeter |
| r1,2Â min. | 2.1 mm |
| Minimum Buy Quantity | N/A |
| da - min. | 77 mm |
| Da - max. | 128 mm |
| ra - max. | 2 mm |
| Calculation factor e | 0.22 |
| D1 ≈ | 124 mm |
| d2 ≈ | 94.7 mm |
| static load capacity: | 270 kN |
| Calculation factor - e | 0.22 |
| dynamic load capacity: | 236 kN |
| r1,2Â - min. | 2.1 mm |
| lubrication hole type: | Lubrication Groove & Hole |
| Harmonized Tariff Code | 84823080 |
| Number of Rows of Rollers | Double Row |
| Basic dynamic load rating C | 243 kN |
| operating temperature range: | Maximum of +390 °F |
| Basic dynamic load rating - C | 243 kN |
| Calculation factor Y1 | 3 |
| Fatigue load limit Pu | 29 kN |
| Calculation factor Y2 | 4.6 |
| Calculation factor Y0 | 2.8 |
| Calculation factor - Y1 | 3 |
| Calculation factor - Y2 | 4.6 |
| Calculation factor - Y0 | 2.8 |
| Fatigue load limit - Pu | 29 kN |
| Basic static load rating C0 | 270 kN |
| Basic static load rating - C0 | 270 kN |
Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.
Spherical roller bearings are an important part of many industrial applications due to their long life, versatility, and capacity to bear high loads. Whether you are an engineer, a...
Mounted spherical roller bearings remain vital across multiple sectors because of their robust load-carrying capacity, misalignment tolerance, and ability to function under extreme operating conditions. From manufacturing to construction...
For a dependable and high-performance spherical roller bearing, look no further. Our AMIGO 21313 E – 21300 Series Spherical Roller Bearings are constructed with high durability, smooth functionality, and high load bearing capacity in mind. We are sure to have what you need be it bearings for industrial machines, heavy-duty applications, or specialized equipment.
Durable Design: Built to withstand heavy loads and harsh environments, ensuring prolonged operational life and reliability. Enhanced Performance: Precision-engineered for optimal efficiency and reduced friction, improving overall system functionality. Self-Alignment Capability: Adjusts to misalignments automatically, minimizing wear and ensuring smoother operations in dynamic applications. Heat Resistance: Designed to maintain performance under high-temperature conditions, providing consistent and reliable operation.
Amigo Bearings: Your trusted partner for high-performance, custom-engineered bearing solutions from China.
