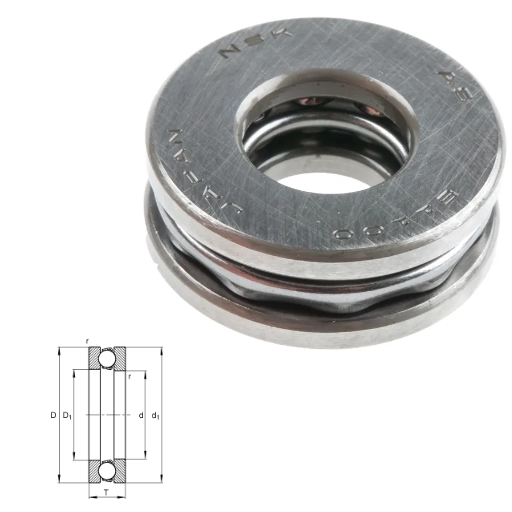

51109 – 51100 Series Extra Light Duty Ball Thrust Ball Bearings

51109

51109 - 51100 Series Extra Light Duty Ball Thrust Ball Bearings provide dependable support for axial loads in light-duty applications. These bearings are designed for high precision and are lightweight, thus fulfilling various operational needs while ensuring smooth and flawless performance. They are made of high-quality materials, offering consistent functionality and optimum efficiency, making them great for lightweight work. For dependable results in various low-weight applications, 51109 - 51100 Series bearings are the thrust bearings of choice.

51109 interchange FAG 51109
51109 cross reference FAG 51109
51109 Equivalent bearing interchange guide:
Price:enquiry
Model Number:51109

Explore the 51109 - 51100 Series Extra Light Duty Ball Thrust Ball Bearings Catalogue

m0,087 kg / Weight
A0,024 / Factor min. load
d45 mm
D65 mm
T14 mm
Size (mm)45x65x14
Width (mm)14
d165 mm
nG7100 1/min / Limiting speed
D147 mm
Ca28000 N / Dynamic load rating (axial)
C0a69500 N / Static load rating (axial)
Bearing number51109
Cua3050 N / Fatigue limit load, axial
rmin0,6 mm
ra max0,6 mm
da min57 mm
Da max53 mm
Bore Diameter (mm)45
Outer Diameter (mm)65

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 51109 Bearings

Order AMIGO 51109 Bearings for reliable control of axial load in light-duty tasks. These Extra Light-Duty Ball Thrust Ball Bearings 51100 Series are exceptionally crafted for precision, durability, and smooth performance. Their compact, high-quality, and multi-purpose design offers many operational solutions to meet specific requirements. Depend on AMIGO 51109 Bearings for consistent lightweight applications where functionality and efficiency are critical, consistently delivering reliable results.

Reliable Axial Load Support: Engineered to provide dependable performance in light-duty axial load applications.
Precision and Durability: Designed for lasting accuracy and smooth operation under various conditions.
Compact and Versatile Design: Tailored for diverse settings with a high-quality, space-efficient structure.
Optimized Lightweight Efficiency: Ensures consistent functionality for enhanced performance in lightweight tasks.
