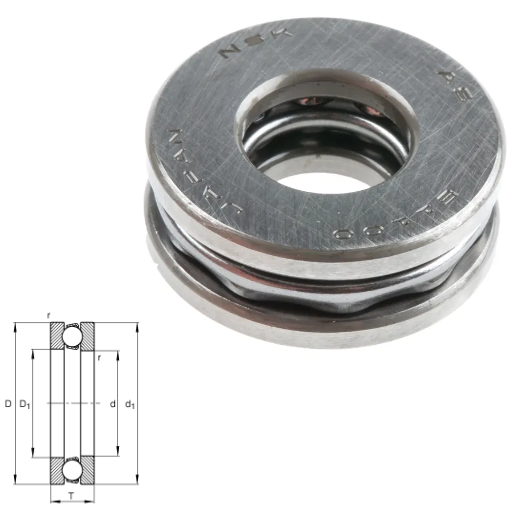

51108 – 51100 Series Extra Light Duty Ball Thrust Ball Bearings

51108

51108 - 51100 Series Extra Light Duty Ball Thrust Ball Bearings precisely support axial loads for light-duty applications. These ball thrust bearings are built with long-lasting endurance, smooth operation, and reliable performance. Their compact, high-quality design enables ball thrust bearings to address operational challenges and offer versatile frameworks. Ball thrust bearings are best suited for lightweight operations where optimized results throughout consistent functionality are needed.

51108 interchange FAG 51108
51108 cross reference FAG 51108
51108 Equivalent bearing interchange guide:
Price:enquiry
Model Number:51108

Explore the 51108 - 51100 Series Extra Light Duty Ball Thrust Ball Bearings Catalogue

m0,114 kg / Weight
A0,02 / Factor min. load
d40 mm
D60 mm
T13 mm
Size (mm)40x60x13
Width (mm)13
d160 mm
nG7400 1/min / Limiting speed
D142 mm
Ca27000 N / Dynamic load rating (axial)
C0a63000 N / Static load rating (axial)
Bearing number51108
Cua2750 N / Fatigue limit load, axial
rmin0,6 mm
ra max0,6 mm
da min52 mm
Da max48 mm
Bore Diameter (mm)40
Outer Diameter (mm)60

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our 51108 Bearings

Order AMIGO 51108 Bearings for smooth axial load balancing in light-duty applications. These Ball Thrust Bearings of the 51100 Series excel in Extra Light Duty applications and provide sustained reliability, durability, and smooth operation. Compact and high-quality, the bearings are multifunctional and designed for various operational requirements. Trust AMIGO 51108 Bearings in low-amplitude applications for dependable functionality and optimized performance.

Precise Axial Load Support: Provides exceptional reliability for light-duty axial load applications.
Durable and Smooth Operation: Designed for long-lasting, seamless performance across varied conditions.
Compact, High-Quality Design: Engineered for versatility and optimal functionality in lightweight environments.
Optimized Lightweight Performance: Tailored solutions ensure consistent results in diverse operational settings.
