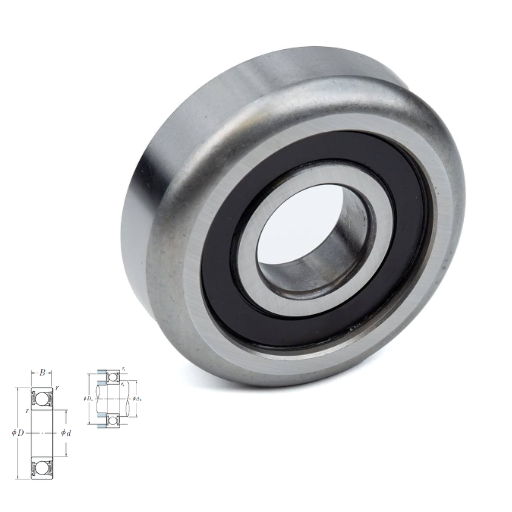

MG-306-FFB – Mast Guide Ball Bearings

MG-306-FFB

Another name for the Amigo MG-306-FFB - Mast Guide Ball Bearings is high load; these are ultra-precise, durable, and smooth in their vertical movement. It has a 30 mm bore diameter, 82.55 mm outer diameter, and 26.97 mm thickness. These bearings are excellent in forklifts, material handling equipment, and industrial machinery.

BL 306 ZZ interchange NSK BL 306 ZZ
BL 306 ZZ cross reference NSK BL 306 ZZ
BL 306 ZZ Equivalent bearing interchange guide:
Price:enquiry
Model Number:BL 306 ZZ

Explore the MG-306-FFB - Mast Guide Ball Bearings Catalogue

ParameterDetails
C19 mm
d30 mm
D72 mm
B19 mm
Weight0,364 Kg
r min.1,1 mm
da max42 mm
Da max.65,5 mm
ra max.1 mm
da min.36,5 mm
Size (mm)30x72x19
Width (mm)19
Bearing numberBL 306 ZZ
Bore Diameter (mm)30
Outer Diameter (mm)72
Basic dynamic load rating (C)27,9 kN
Basic static load rating (C0)20,7 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our MG-306-FFB Bearings

Amigo MG-306-FFB Bearings offer high load capacity, accuracy, and durability. With a 30 mm bore, 82.55 mm outer diameter, and 26.97 mm thickness, these bearings are perfect for forklifts, material handling, and general industrial machinery where the vertical motion has to be smooth and reliable in the most demanding applications.

✅ High-Load Capacity: Handles substantial radial and axial loads with ease.
✅ Precision and Durability: Ensures reliable performance in tough industrial environments.
✅ Versatile Applications: Perfect for forklifts and material handling equipment.
✅ Smooth Vertical Movement: Designed for controlled and efficient mast operations.
