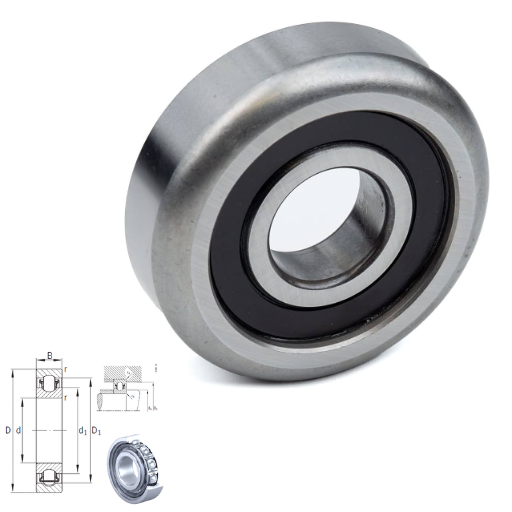

MG-207-FFUA – Mast Guide Ball Bearings

MG-207-FFUA

The MG-207-FFUA Mast Guide Ball Bearings can withstand high radial and axial loads, ensuring smooth and precise vertical movement of forklifts and industrial machines. With a 35mm bore, 91mm outer diameter, and 31mm thickness, they suit heavy-duty applications that require durability, precision, and safety.

BXRE207 interchange INA BXRE207
BXRE207 cross reference INA BXRE207
BXRE207 Equivalent bearing interchange guide:
Price:enquiry
Model Number:BXRE207

Explore the MG-207-FFUA - Mast Guide Ball Bearings Catalogue

ParameterDetails
D72 mm
d35 mm
B17 mm
C17 mm
d147,8 mm
D160,6 mm
r min.1,1 mm
Weight0,308 Kg
Da max.65 mm
ra max.1 mm
da min.42 mm
Size (mm)35x72x17
Width (mm)17
Bearing numberBXRE207
Reference speed6 400 r/min
Bore Diameter (mm)35
Outer Diameter (mm)72
Fatigue load limit (Pu)1 430
Basic dynamic load rating (C)39 kN
Basic static load rating (C0)28,5 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our MG-207-FFUA Bearings

Amigo MG-207-FFUA Bearings are characterized by their durability, programmatic accuracy, and high load capacity. They have a 35mm bore, an outer diameter of 91 mm, and a thickness of 31mm. This makes them very useful for processes inherent to lifting in both forklifts and other industrial machinery. With these Fixing Bearings, designed for heavy loads, you can engage in more diverse activities. This is likely to benefit your entire business.

✅ Durable and Reliable Bearings: Amigo MG-207-FFUA Bearings ensure long-lasting, high-performance operation.
✅ Optimized for Heavy Loads: Designed to handle high radial and axial load capacities.
✅ Precision for Industrial Applications: Ensures smooth vertical movement in forklifts and machinery.
✅ Order Now for Efficiency: Upgrade your operations with Amigo MG-207-FFUA Bearings today!
