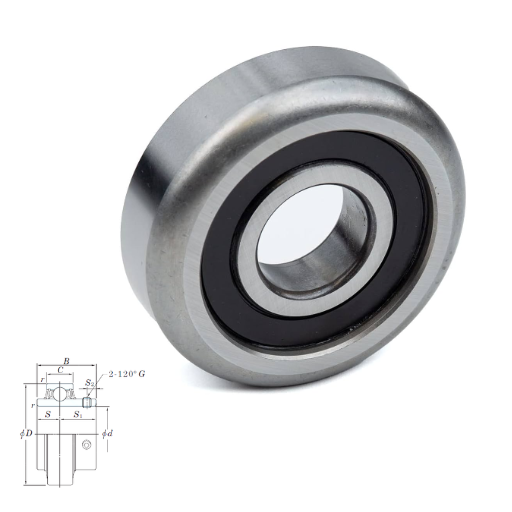

MG-206-FFW – Mast Guide Ball Bearings

MG-206-FFW

The Amigo MG-206-FFW is built to work in most high-load applications, such as precise maneuvering and smooth functioning, without sacrificing performance or strength. These specs have the inner ring measuring 29 mm and the outer ring measuring 81 mm, making these bearings most appropriate for forklifts, handling machines, and industrial equipment in any extreme condition.

RB206 interchange KOYO RB206
RB206 cross reference KOYO RB206
RB206 Equivalent bearing interchange guide:
Price:enquiry
Model Number:RB206

Explore the MG-206-FFW - Mast Guide Ball Bearings Catalogue

ParameterDetails
D62 mm
d30 mm
B38,1 mm
C22 mm
S15,9 mm
S122,2 mm
S26 mm
D267,5 mm
Weight0,38 Kg
r min.1 mm
Size (mm)30x62x38.1
Width (mm)38,1
Bearing numberRB206
Bore Diameter (mm)30
Outer Diameter (mm)62
Basic dynamic load rating (C)19,5 kN
Basic static load rating (C0)11,3 kN

Latest Blog Posts

Maintain Inventiveness by Following The Blog for the Latest Best Practices, Techniques, Innovations, and Insights in the Field.

Why Choose Our MG-206-FFW Bearings

Amigo MG-206-FFW Bearings boast a precision and durable design for heavy-load applications, with the added benefit of smooth vertical movement. They have a bore diameter of 29mm and an outside diameter of 81mm, making them ideally suited for forklift or material handling equipment and even individual machines. This guarantees reliability in such harsh conditions.

✅ High-Load Capacity: Supports substantial radial and axial loads for heavy tasks.
✅ Precision and Durability: Ensures smooth, safe, and reliable operations in tough environments.
✅ Versatile Applications: Perfect for forklifts, material handling, and industrial machinery.
✅ Efficient Vertical Movement: Designed for smooth and controlled mast operations.
